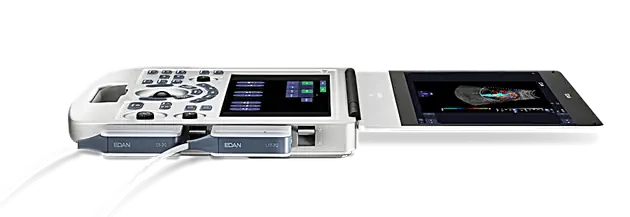

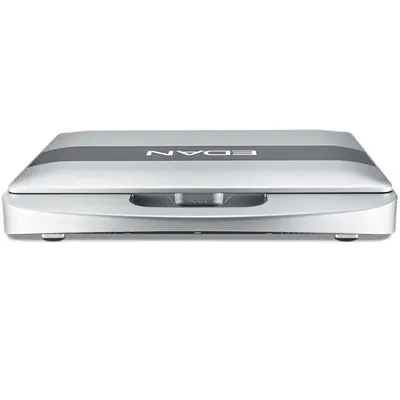

Acclarix AX3 Portable Colour Doppler
The remarkable Acclarix AX3 Compact Portable Ultrasound System delivers the best features for your point-of-care and general imaging applications. With its unique dual-socket inspiration in a lightweight 4.5kg body, the Acclarix AX3 is a potable system that makes your point-of-care service much more efficient and reliable.
Ergonomic Design
- Unique dual-socket & dual-batteries design empowering a longer working time for up to 2 hours.
- Ultra-fast booting time: within 30 seconds
- 15.6†LCD medical grade monitor with a high resolution and 180° open view angle
- 10.1†sensitive touch screen allowing for efficient operation at your fingertips
- Lightweight magnesium alloy body at 4.5kg making it very easy to carry
- Handle provides support during imaging
Intelligent Workflow
- One key optimization for different modes
- One key for automatic measurements
- High-capacity storage with USB transfer
- Efficient ‘swipe’ gesture control
- Innovative user interface layout with an accurate function division
Probes
- C5-2Q (Abdominal Convex): Abdomen, Fetal/Obstetrics, Urology, Gynecology, Musculoskeletal
- E8-4Q (Endocavity Convex): Fetal/Obstetrics, Gynecology, Trans-vaginal, Trans-rectal, Urology
- L12-5Q (Small Parts): Small parts, Peripheral, Vascular, Musculoskeletal
- P5-1Q (Linear Cardiac):
- L17-7Q (Small Parts/ Musculoskeletal): Small parts, Peripheral, Vascular, Musculoskeletal
AX3 |
|
|---|---|
| System | |
| Physical Channels | 64 |
| Beam Forming | Quad beam |
| Processor | ARM |
| Memory | 2GB |
| Hard Drive | 120G SSD |
| Operating System | Android |
| Booting Time | From off: ±30 seconds From sleep: 5 seconds |
| Shutdown Time | 3 seconds |
| Dimensions | 375mm x 380mm x 58mm |
| Weight |
NO BATTERY One transducer port: 4.2kg Two transducer ports: 4.35kg ONE BATTERY One transducer port: 4.65kg Two transducer ports: 4.79kg TWO BATTERY Two transducer ports: 5.24kg |
| Ports | Dual alctive transducer ports Single or dual ports configurable |
| I/O Ports | S-Video, USB 3.0, USB 2.0 (two), HDMI, Ethernet |
| Power Consumption | 100V ~ 240V | 50Hz / 60Hz |
| Operating Environment | 0°C ~ 40°C / 15%RH ~ 95%RH (non-condensing)/ 86kPa ~ 106kPa |
| Storage Envisronment | -20°C ~ 55°C / 15%RH ~ 95%RH (non-condensing)/ 70kPa ~ 106kPa |
| Supported Languages | English, Chinese |
| Monitor | |
| Display | 15.6" high resolution LCD monitor |
| Resolution | 1920 x 1080 |
| Image Size | 1040 x 780 |
| Open Angle | 0º - 180º |
| Latch | Magnetic latch closure |
| Sound | Built-in sterio speaker |
| Image | Adjsutable brightness and contrast |
| Battery | |
| Type | Rechargable & Removable |
| Configuration | Max. 2 batteries configurable |
| Capacity | 5000mAh (each) |
| Time | Approximately 1 hour typical ultrasound exman use for a full charge (for each battery) |
| Standby Time | >4 Hours (with two batteries) |
| Charge time | 2.5 hours per battery / 5 hours for both batteries |
| indicator | Indicator on the console near the handle Battery level icon on the main screen |
| Options | |
| Optional Add-Ons |
Transducers Neddle guide bracket kits CW (with phased-array Transducers) Printers Battery USB Disk WIFI Footswitch: single button/double buttons, User-defined functions (freeza, save, print) Simple Cart: MT-808 (No Release)
Suitcase |
* Specifications are subject to change without prior notice
