Innovision DXII Universal Type
The Innovision DXII Universal Floor Type x-ray system is a versatile radiography system enabling various advanced radiography applications for limited space installations. This x-ray system is specially designed for very small x-ray rooms with its universal rail system.
Resourceful Design

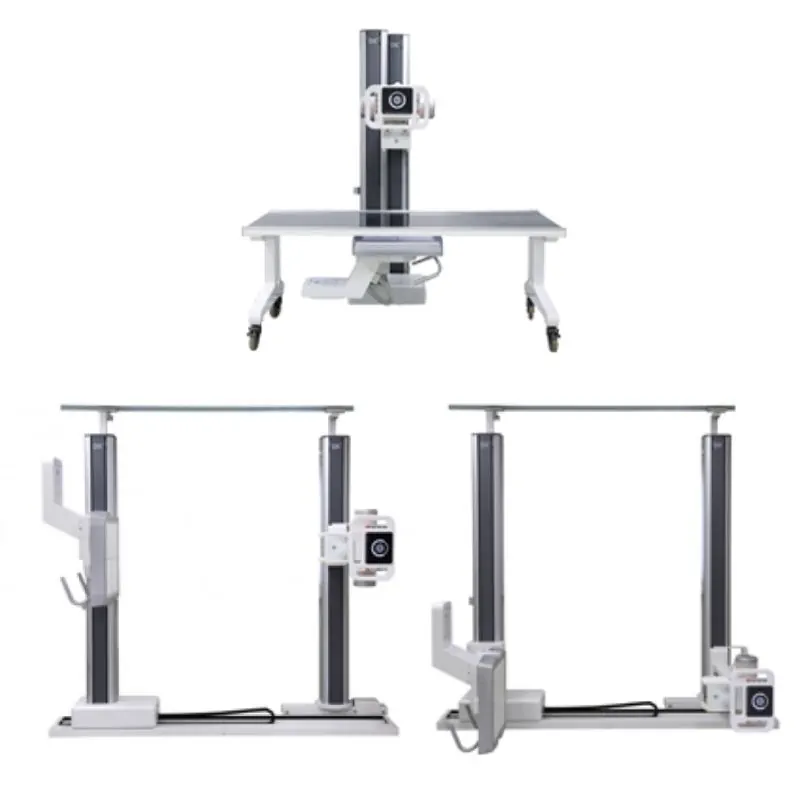

This x-ray system’s unique and innovative design, supported by a special floor-mounted rail system, overcomes space limitations without sacrificing any diagnostic ability. This x-ray system can easily be utilized as both an x-ray table system as well as a chest x-ray system delivering a full x-ray system with the push of a button for transformation.
Easy Positioning

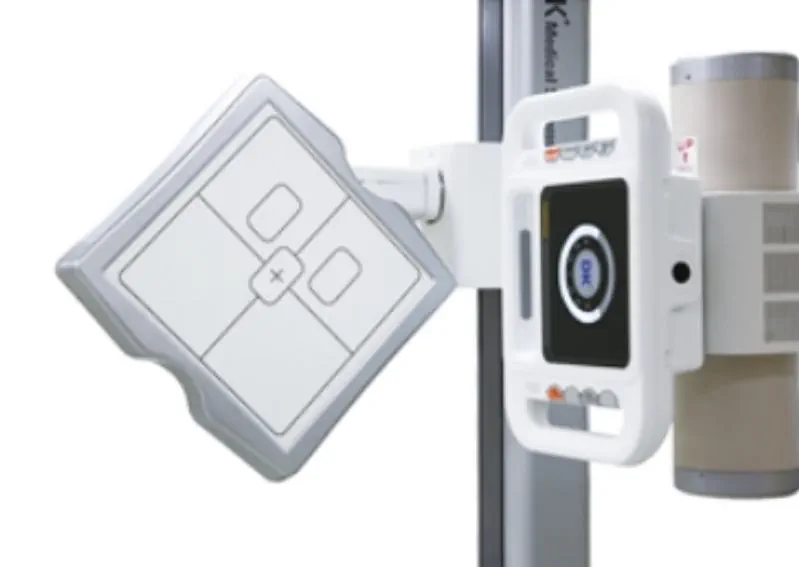

This radiography system has pre-set positions which can easily be triggered with the remote control. The x-ray detector’s bucky can also rotate as well as tilt at 45 degrees allowing advanced radiography applications. The pre-set positions on the remote control are:
- Chest mode
- Standing knee/ankle position
- Table mode
The x-ray system also features the auto-synchronization function in chest mode allowing the x-ray tube to automatically align with the flat-panel detector whenever it is being positioned. This greatly improves the operator’s workflow.
X-ray Tube Support |
|
|---|---|
| SF-90T | |
| Type | Floor to ceiling type |
| Balance System | Weight balance |
| Vertical Travel | 1,450mm |
| Longitudinal Travel | 1,800mm |
| Transverse Travel | 0mm |
| Tube Rotation | ± 180° |
| Tube Swivel | ± 0° |
| Drive | Manually driven |
| Tube Height Display | Goniometer (LED light) |
Detector Stand |
|
|---|---|
| DS-90T | |
| Type | General detector stand |
| Balance system | Weight balance |
| Vertical Travel | 1,240mm |
| Longitudinal travel | 1,800mm |
| Detector Swivel | ± 45° |
| Vertical Drive | Motor driven |
| Longitudinal Drive | Motor driven |
| Vertical Lock | Electro Magnetic Lock |
| Detector | 17" x 17" |
Table |
|
|---|---|
| TM-22 | |
| Type | Mobile table |
| Dimensions (HxLxW) | 700mm x 1,950mm x 798mm |
| Tabletop material | Acryl (basic) |
* Specifications are subject to change without prior notice
